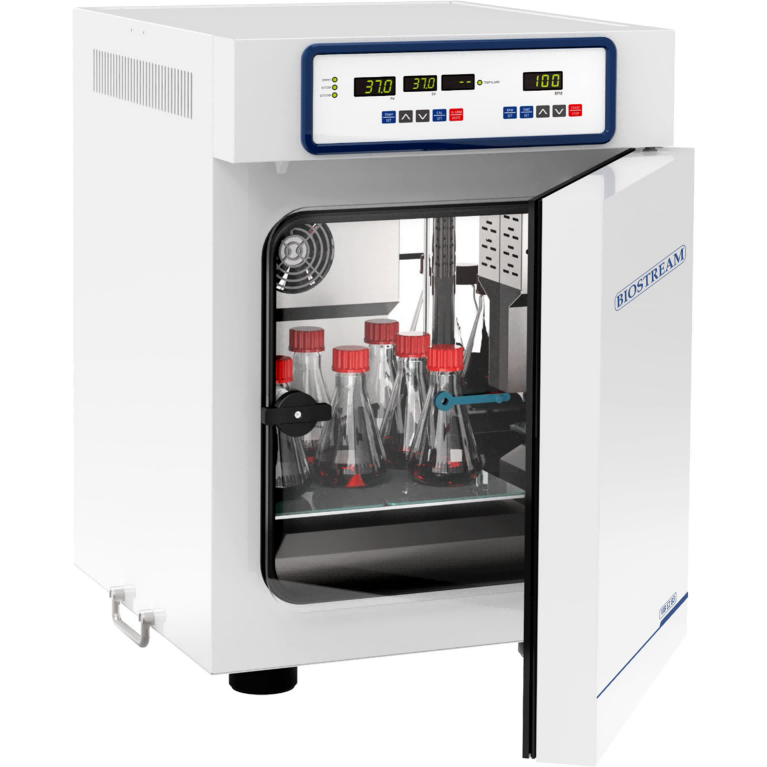

Incubation Shaker for Microbial Culture
The shaker may be operated as a stand-alone device on a laboratory bench or assembled into a double-stack configuration. It is extensively used for microbial cultivation, suspension-cell culture, and molecular-biology assays.
Features
> Easy to completed the stacking process.
> With electromagnetic drive technology, shaking stable and low noise.
> Integrated shaking unit, the volume of flask up to 2L.
> Opening direction of the out door can be switched option.
> Built-in circulation fan to ensure the uniformity of temperature field.
> Stainless steel chamber, easy to clean.
> Alarm for temperature deviation, speed deviation or open the door.
> Independent safety temperature control to prevent overheating.
> Peltier cooling enables a compact, efficient, and silent design without refrigerants.
> Easy to completed the stacking process.
> With electromagnetic drive technology, shaking stable and low noise.
> Integrated shaking unit, the volume of flask up to 2L.
> Opening direction of the out door can be switched option.
> Built-in circulation fan to ensure the uniformity of temperature field.
> Stainless steel chamber, easy to clean.
> Alarm for temperature deviation, speed deviation or open the door.
> Independent safety temperature control to prevent overheating.
> Peltier cooling enables a compact, efficient, and silent design without refrigerants.
Specifications
| Model | VIB EZ B3 | |
| Temperature | Range of normal type
Range of cooling type |
RT+7℃ -60℃ (without cooling unit, at RT25℃)
RT-10℃ – 60℃(with peltier cooling,at RT25℃ ) |
| Control accuracy | ±0.1℃ | |
| Uniformity | ±0.2℃(at 37℃ /RT25℃ ) | |
| Timer function | Temperature control operates continuously without a timer; shaking speed may be set to a user-defined timed endpoint. | |
| Shaking | Speed | 30-300rpm |
| Control accuracy | ± 1% FS | |
| Shaking diameter | 25 mm | |
| Chamber Volume | 71L | |
| Platform (w x d ) | 300 x 330 mm | |
| Capacity | 100ml x 16 | |
| 250ml x 9 | ||
| 500ml x 5 | ||
| 1000ml x 4 | ||
| 2000ml x 1 | ||
| Optional parameters | Peltier cooling | |
| UV sterilization | ||
| Dimensions (w x d x h) | 1 deck | 400 x 600 x 618 mm |
| 2 decks | 400 x 600 x 1236 mm | |
| Weight of each floor without refrigeration / with refrigeration | Approx.66kg / 75kg | |
