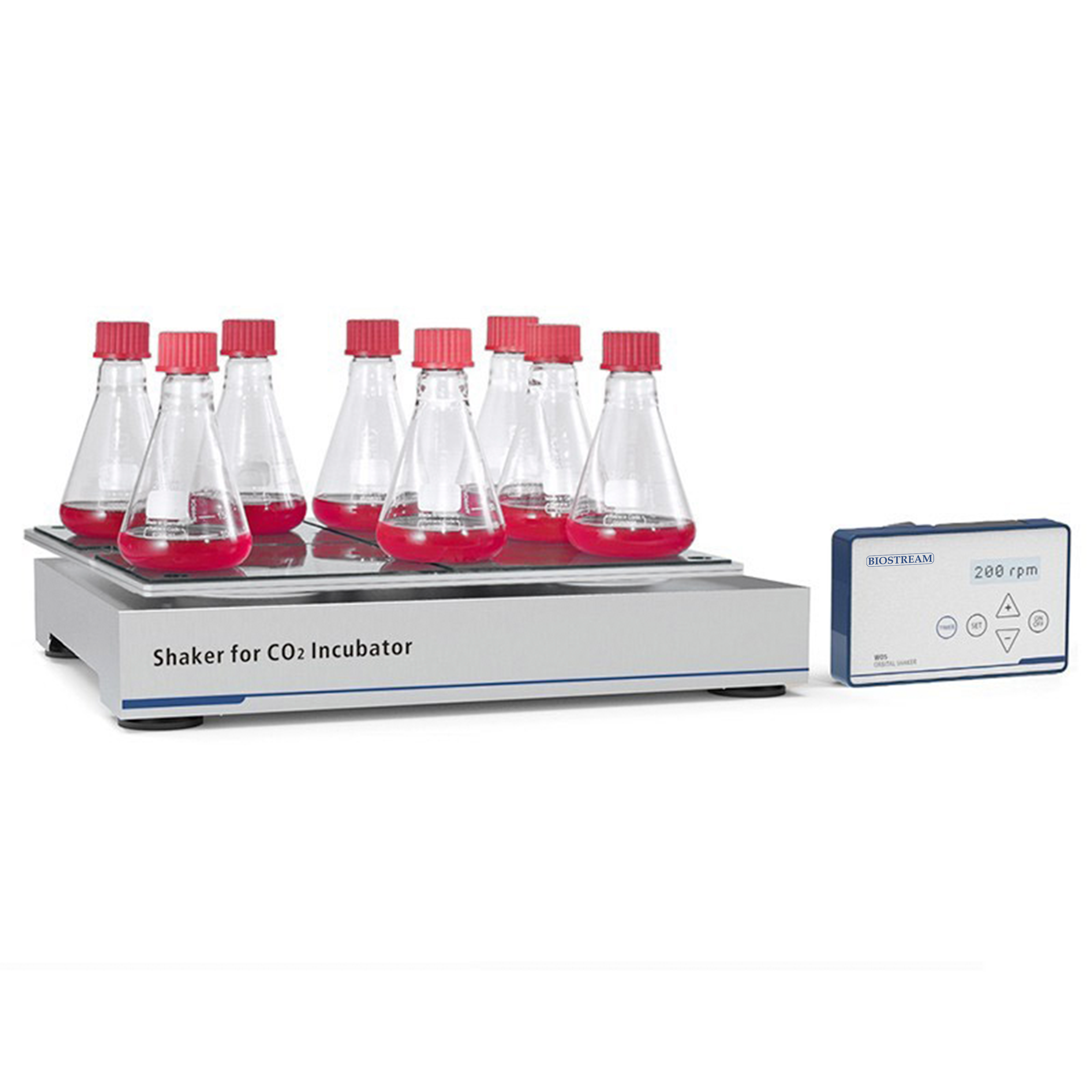

This is Compact Shaker with benefits such as small foot print and easy to move. The non-belt magnetic drive provides low noise, low vibration. Despite compact size, shaking is powerful and the workplace is large to load various vessels.
Features
Gentle magnetic drive
The non-belt magnetic drive design affows for high performance of water resistance.
This most gentle drive unit has exceptionally smooth start-up and braking behavior, and is specifically good for cell cultures.
Made of stainless steel
The entire housing of shaker is made of stainless steel (SUS304), meeting the demand
of GMP’s cleaning requirements. It is easy for the removal of any unwanted liquids
and can be cleaned with chemicals.
No gas leaks
The thin Wire Cable connection between the shaker and the control box can pass
through the sealing part of the inner glass door although no access port is in your
incubator.
Placing remote controller with magnet
Depending on the material type of the incubator or the situation of the lab, placing
remote controller is available with integrated magnets.
Specification
| Model | Bio Shaker |
| Motion | Orbital |
| Control | Microprocessor Digital |
| Motor | Plate BLDC motor |
| Drive System | Direct Magnetic Drive |
| Display | LED display |
| Speed Range（rpm） | 20~ 200 |
| Accuracy（rpm） | ±1 |
| Shaking Throw（mm） | 25 |
| Time Range | Continuous or up to 99 hours 59min |
| Time Increment | 1min |
| Shaker size(W x Lx H mm) | 447x 378x 82 |
| Weight（Kg） | 13.5 |
| Platform Size(W x L mm) | 400×330 |
| Control box Size(W x Lx H mm) | 155 x 95 x 25 |
| Power | 100-230V 50/60HZ |
| Load Capacity | 100ml x 25
250ml x 14 500ml x 9 1000ml x 5 |
| Order No.(25mm) | B6100200 |
