Part # Description

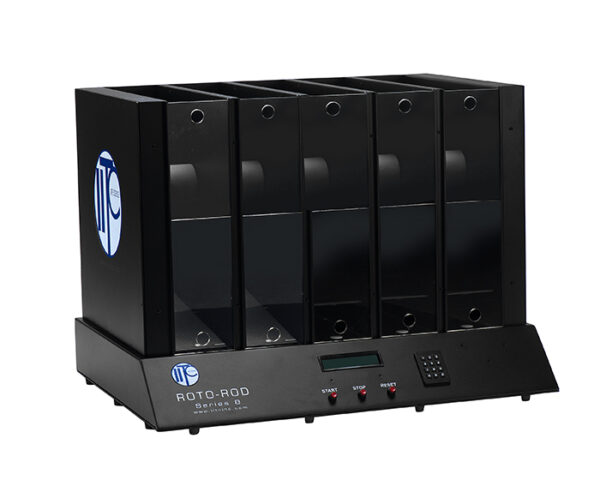

755 Rotarod Treadmill for mice and rats
Series 8 Software
IITC’s Rotarod Test has the capabilities of having up to five mice or rats tested at a time standard.
The user can select from one to five lanes to be included in an experiment. For mice experiments 1¼ inch diameter drums are supplied and for rat experiments 3¾ inch diameter drums are supplied. All that is needed is a standard Philips screwdriver to change the drums, no other tool required.
The LED display shows all test results for each animal position; they are: Stopping RPM, length of test and distance traveled.
Animals drop is sensed by accurate magnetic switches that never need adjusting versus other units on the market today which use photoelectric sensing. Vertically sliding acrylic front panels prevent escape of animals.
Literature Reference: Jones & Roberts, F. Pharm., Pharmacol., 1968, 20, 302
The electronic gear is built into the base of the unit. All parameters are digitally controlled and entered via the keypad on the front panel. Start, stop and reset buttons are also on the front of the unit. An LED display allows the user to view all parameters and test results.
Key features of the IITC Rotarod are the following:
Adjustable test length: 1 to 999 seconds.
Adjustable start speed: 0 to 45 RPM’s.
Adjustable top end speed: 45 RPM’s.
Adjustable ramp speed: 0 to 999 seconds.
Forward, reverse mode
Distance recorded in Meters
Two year warranty
120/240V
CE
